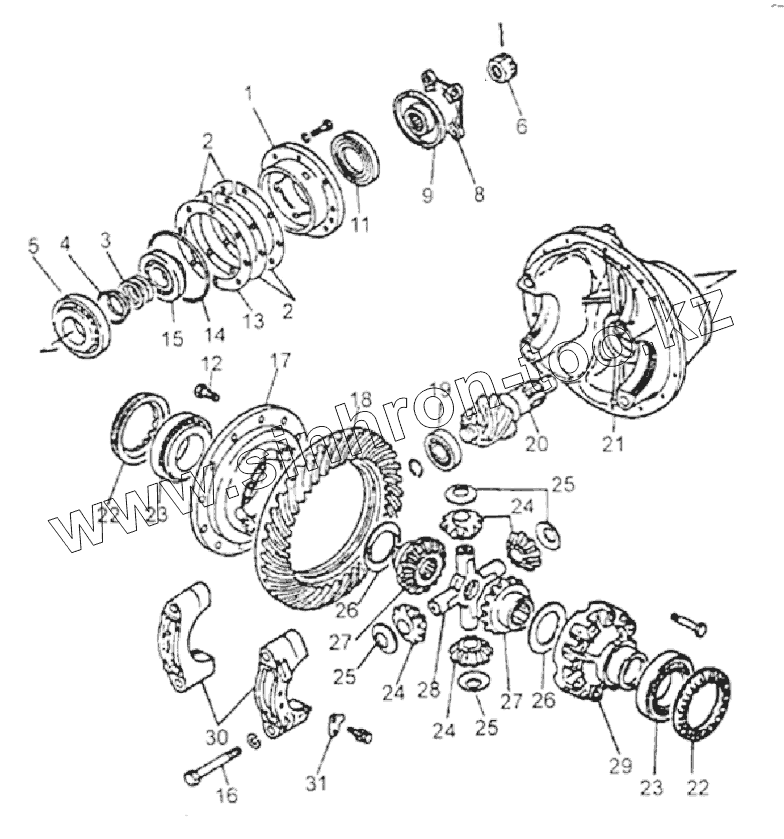

Каталог запасных частей к технике: Golden Dragon XML6127CNG-3141495. FINAL DRIVE
1
2
2
3
4
5
6
8
9
11
12
13
14
15
16
16
17
18
19
20
21
22
22
23
23
24
24
24
25
25
25
26
26
27
27
28
29
30
31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2402ZS01-036 | Bearing seat | |
| 2 | 2402ZS01-081~088 | Separating adjust shim | |
| 3 | 2502ZAS01-131137 | Adjusting washer | |
| 4 | 2402ZB-161174 | Spacer | |
| 5 | 27316E | Front inner bearing assy. | |
| 6 | 2402ZS24C-072 | Hex slotted nut | |
| 8 | 2402ZS24C-065 | Flange and cover assy | |
| 9 | 2402ZB-067 | Dust cover | |
| 11 | 2402ZB-060 | Oil seal assy. | |
| 12 | 2402ZS01-356 | Bolt | |
| 13 | 2402ZS01-081~088 | Separating adjust shim | |
| 14 | 2402ZS01-037 | -ring | |
| 15 | 27315E | Front outer bearing assy | |
| 16 | Q151B24140-0H1 | Bolt | |
| 16 | Q40524 | Heavy-duty spring washer | |
| 17 | 2402ZS02-317-B | Left bevel gear differential case | |
| 18 | M24026ZQ1143A | Ring gear | |
| 19 | 2402ZB-033 | Bearing | |
| 20 | M24025ZQ1143P | Drive pinion | |
| 21 | 2402ZS01-115 | Differential case | |
| 22 | 2402ZB-381 | Adjusting nut | |
| 23 | 7520E | Differential bearing assy. | |
| 24 | 2402ZS01-345-B | Planet gear | |
| 25 | 2402346-ZQ01B | Thrust washer | |
| 26 | 2402336-ZQ01B | Thrust washer | |
| 27 | 2402ZS01-335-B | Side gear | |
| 28 | 2402ZS01-331 | Spider | |
| 29 | 2402ZS01-318-B | Right bevel gear differential case | |
| 30 | 2402ZS01-117 | Bearing cap | |
| 31 | 2402ZB-383 | Lock plate |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
