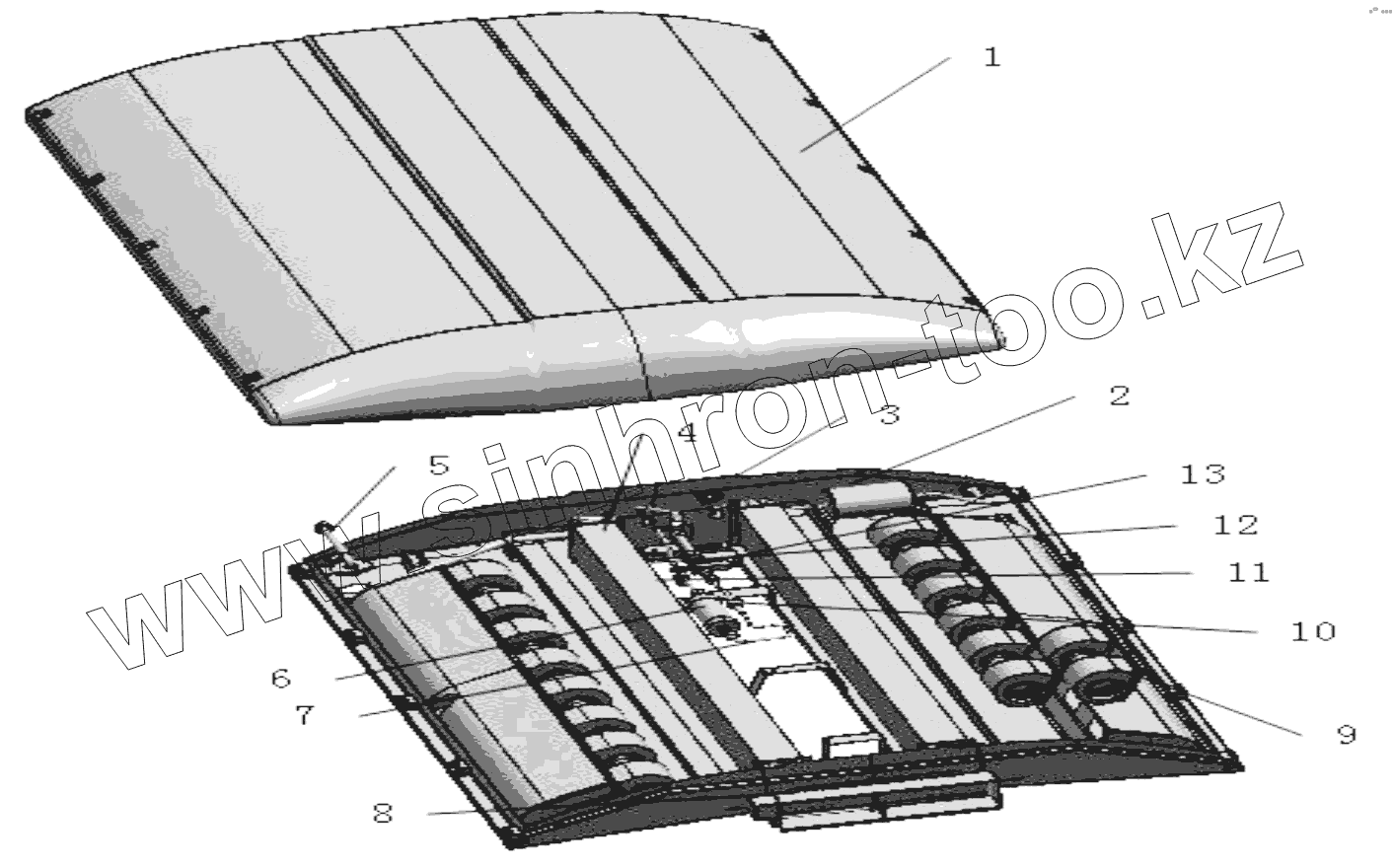

Каталог запасных частей к технике: Golden Dragon XML6127CNG-3141495. EVAPORATOR
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Golden Dragon
Hyundai
Ikarus
Karosa
King Long
Neoplan
Yutong
ZF
АМАЗ
Богдан
ЗИЛ
КАВЗ
Камский автозавод
ЛАЗ
ЛЗГМП
ЛиАЗ
Нефтекамский автозавод
ПАЗ
УралАЗ
Модель
Не выбрано
XML6105CN-7150227 (2015)
XML6125CN-3150244 (2015)
XML6127CNG-3141495 (2015)
XML6139JR-3141082 (2015)
XML6845CN-3150236 (2015)
Схема
>
Не выбрано
FRONT PANEL
6127X01-3741100-11 WIPER ASSEMBLY
SIDE PANEL
SIDE COMPARTMENT
BATTERY COMPARTMENT
PASSENGER DOOR INSTALLATION ASSEMBLY
REAR PANEL
DRIVER COMPARTMENT
ELECTRICAL APPARATUS, FRONT INSTRUMENTS PANEL
6999A01-3700100-RUS ELECTRIC BOX
TOP COVER & SIDE PANEL
ARMREST & SEAT
FLOOR COVERING & REPAIR HATCH
STEERING SYSTEM
STEERING OPERATION BOOSTING PIPELINE
11R105-3425120 STEERING OIL CAN
TRANSMISSION OPERATING MECHANISM
CLUTCH ASSEMBLY
CLUTCH OPERATION SYSTEM
SCHEMATIC DIAGRAM, BRAKE
ARRANGEMENT DIAGRAM, BRAKE
CONTROL AND FRONT BRAKE
AIR CYLINDER AND 4-WAY PROTECTIVE VALVE
AIR SUPPLY
REAR BRAKE AND PARKING BRAKE
ANTI-LOCK BRAKING SYSTEM (ABS)
FRONT AXLE ASSEMBLY
FRONT AXLE SYSTEM
WHEEL HUB WITH BRAKE DISC ASSEMBLY
REAR AXLE ASSEMBLY
REAR AXLE ASSY
FINAL DRIVE
WHEEL HUB WITH BRAKE DISC ASSEMBLY
FRONT SUSPENSION ASSEMBLY
JR-65F-12-40 FRONT AIR SUSPENSION ASSY
REAR SUSPENSION ASSEMBLY
JR-130R-12-29 REAR AIR SUSPENSION ASSY
AIR LEVELING
WHEEL INSTALLTION
DRIVE SHAFT INSTALLATION
6106G5-2201010 DRIVE SHAFT
GEARBOX ASSEMBLY
S6-160-158 GEARBOX ASSEMBLY
HOUSING, TRANSMISSION
HOUSING, CLUTCH
INPUT SHAFT, COUNTERSHAFT & REVERSE GEAR SHAFT ASSY
SHAFT, OUTPUT
REAR COVER
GEAR SHIFT MECHANISM
UPPER COVER & SHIFTING SHAFT
ENGINE& AROUND PARTS
AVI2120R3071A GENERATOR
ENGINE MOUNTING SYSTEM
REDUCER INSTALLATION
TB24-511074110-1 RETARDER DISASSEMBLY
TB24-511074110-2 ELECTRICAL APPARATUS
CHASSIS LUBRICATION SYSTEM
KFD-A CONTRAL LUBRICATION DEVICE
CHASSIS ACCESSORIES
GAS SYSTEM
THROTTLE CONTROL MECHANISM
AIR INTAKE SYSTEM
AH24196 AIR FILTER
EXHAUST SYSTEM
COOLING SYSTEM
6103A01-1311010-JS EXPENSION WATER TANK
6125Y10-1025010-JZ INTERMEDIATE PULLEY ASSY, ADJUSTING LEVER
AIR CONDITIONING SYSTEM
CONDENSER
EVAPORATOR
HEATING PIPELINE
T350 THE HEATER ASSEMBLY
CS-14H-30 DEFROSTER
NAME PLATE, COMPLETE SET
LOCK, COMPLETE SET
TOOLS SUPPLIED WITH THE BUS
XML-3900 TOOLS SUPPLIED WITH THE BUS
HARNESS, COMPLETE SET
1
3
4
5
6
7
8
9
10
11
12
13
Позиция на иллюстрации
Заводской номер детали
Название детали
1
7130562
Top cover, evaporator
3
6000164
Outer housing component, evaporator
4
2009651
Core assembly, evaporator
5
4010005
Pipe component, air exhaust
6
4017404
Dryer
7
4006206
U-pipe
8
BXF000001
Fresh air mechanism
9
50000000
Evaporating fan
10
4006704
Sight glass
11
4128713
Connector component, transition
12
4019455
Expansion valve
13
4007301
Pipe component, external balancing
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
