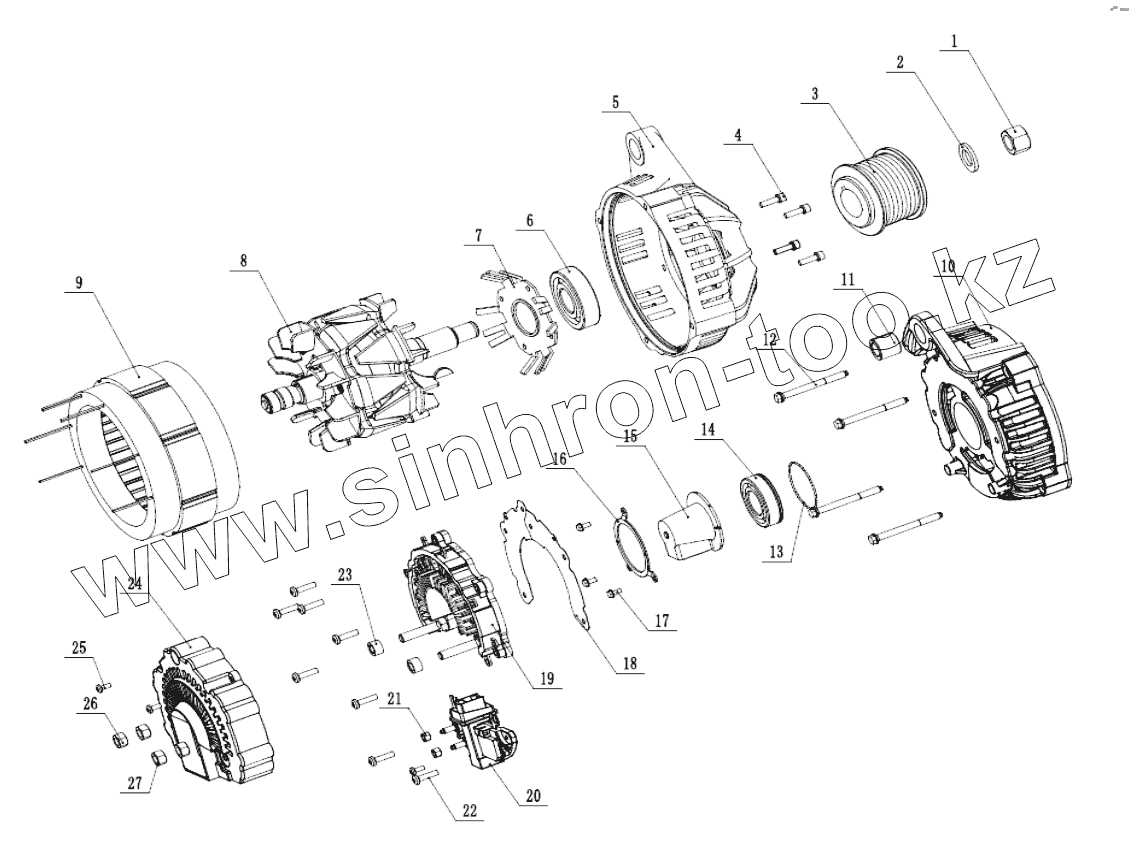

Каталог запасных частей к технике: Golden Dragon XML6127CNG-3141495. AVI2120R3071A GENERATOR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 0244177A01 | Belt pulley nut | |
| 2 | 0244178A01 | Plane washer | |
| 3 | AVi2120R3071A-0002 | Belt pulley | |
| 4 | AVI168-1002 | Combination bolt | |
| 5 | AVI168WB3001A-1100 | Front end cover subassembly | |
| 6 | NSK6305DDGC3EHHA1S6 | Front bearing | |
| 7 | AVI168WB3001A-1001 | Bearing cover | |
| 8 | AVI21203071A-2000 | Rotator assembly | |
| 9 | AVI2120-3000 | Stator assembly | |
| 10 | AVI21203071A-4100 | End cover assembly, rear | |
| 11 | AVI21203071A-4101 | Adjusting sleeve | |
| 12 | JFZ291-0004 | Hex bolt w/cone face | |
| 13 | 8SC3110VC-4001 | O-ring | |
| 14 | NSK6205DDU6NC4 | Rear bearing | |
| 15 | AVI168-7000 | Sealing sleeve assembly | |
| 16 | AVI168-0013 | Sealing sleeve clamps | |
| 17 | 0300139606 | Screw, self-tapping | |
| 18 | AVI168-4002 | Insulation Paper | |
| 19 | AVI2110-6000 | Rectification assembly | |
| 20 | 8RL3016C | Brush, voltage regulator assy. | |
| 21 | 0243642S06 | Combination nut | |
| 22 | GB9074.4-88-M5X20 | Combination screw | |
| 23 | AVI168-0015 | Support sleeve | |
| 24 | AVI168-8000 | Protective shield | |
| 25 | GB9074.4-88-M4X12 | Combination screw | |
| 26 | QC/T607-1999Q322M6 | Combination nut | |
| 27 | QC/T607-1999Q322M8 | Combination nut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
