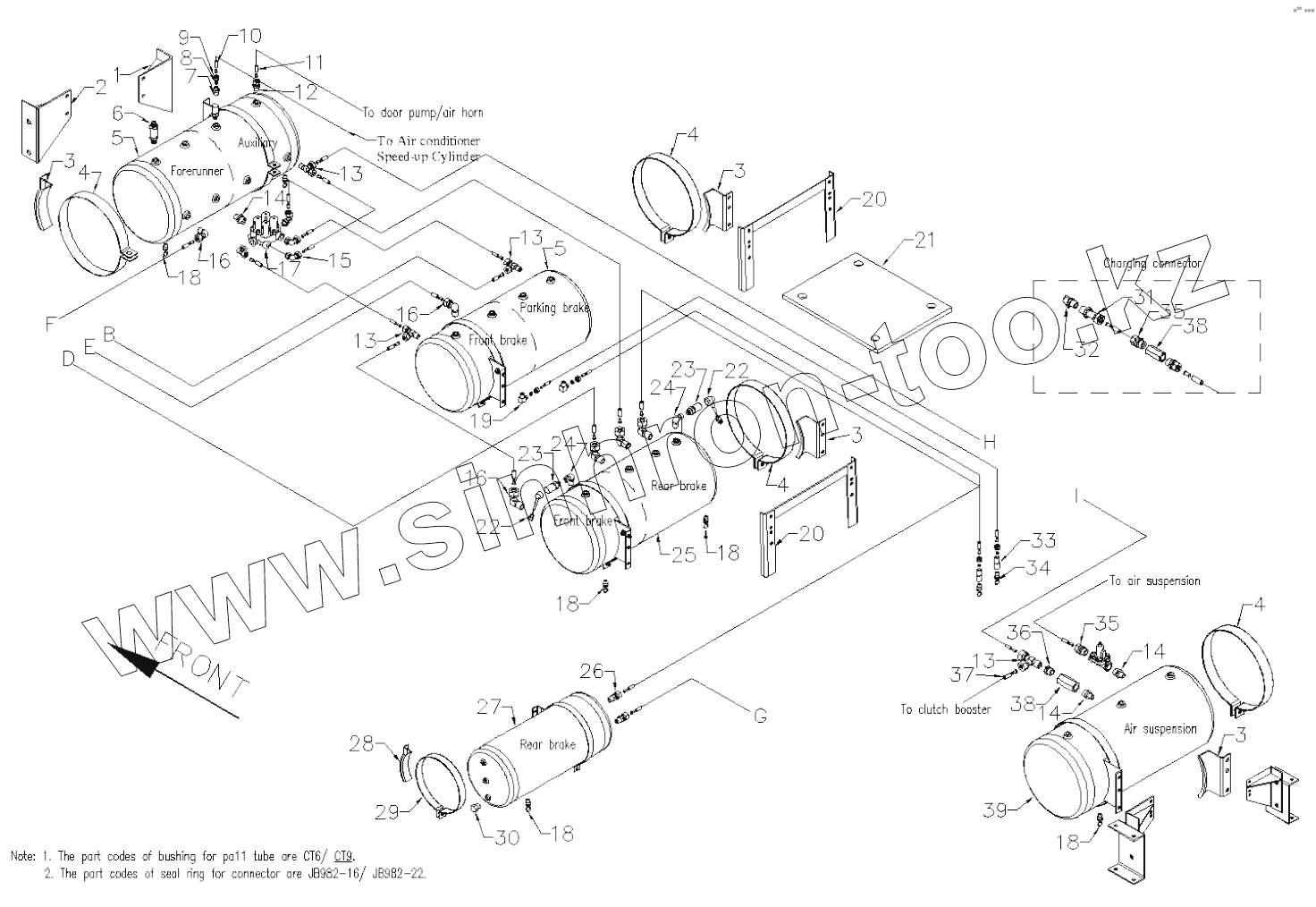

Каталог запасных частей к технике: Golden Dragon XML6127CNG-3141495. AIR CYLINDER AND 4-WAY PROTECTIVE VALVE
1
2
3
3
3
3
4
4
4
4
5
5
6
7
8
9
10
11
12
13
13
13
13
14
14
14
15
16
16
16
17
18
18
18
18
18
19
20
20
21
22
22
23
23
24
24
25
26
27
28
29
30
31
32
33
34
35
35
36
37
38
38
39
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 3500330-201 | Bracket, air cylinder | |
| 2 | 3500320-201 | Bracket, air cylinder | |
| 3 | 6100A2-3500102 | Bracket, air cylinder | |
| 4 | 6100A2-3500101 | Clamp, air cylinder | |
| 5 | 3513020-201 | Air cylinder | |
| 6 | JL990109004 | Safety valve | |
| 7 | 6100-3500055 | Airconditioner speed-up connector | |
| 8 | GB3764-6 | Thread | |
| 9 | GB3759-G6 | Nut | |
| 10 | PAG6X1 | Pall tube | |
| 11 | PAG8X1 | Pall tube | |
| 12 | XML3500251N5F0 | Connector, door pump | |
| 13 | Q/112.1-12/3/8 | Conical thread 3-way connector | |
| 14 | XML3500071N5F1 | Connector body, 4-way protective valve | |
| 15 | XML3506004K3G0 | Straight adjustable thread elbow connector | |
| 16 | Q/108.1-12/3/8 | Straight thread elbow connector | |
| 17 | 9347141100 | 4-way protective valve | |
| 18 | 35360010060 | Water drain valve, air cyinder | |
| 19 | 3500-911-J4C | Connector, water drain, air cyinder | |
| 20 | 3500380-201 | Bracket, air cylinder | |
| 21 | 6126X01-3513011 | Bracket, air cylinder | |
| 22 | 6127A01-3820612-A1 | Waterproof sensor connector | |
| 23 | 360-018-063-001C | Air pressure sensor | |
| 24 | 6127A01-3513013 | Transition connector, air pressure sensor | |
| 25 | 3513010-201 | Air cylinder | |
| 26 | Q/103.1-12/3/8 | Straight thread connector | |
| 27 | 6110UB1-3513010 | Air cylinder | |
| 28 | 3500370-201 | Bracket, air cylinder | |
| 29 | 3513301-001 | Clamp, air cylinder | |
| 30 | Q/202-3/8 | Screw plug, pipe thread, outer hex | |
| 31 | 6845Y04-3506310 | Transition connector, air taking | |
| 32 | 35AD-06510 | Air take connector | |
| 33 | 3500-916-J4C | Connector, water drain valve | |
| 34 | WA-3533100-XML | Water drain valve, air cyinder | |
| 35 | 6100A-3500351 | Connector, PVC valve | |
| 36 | 6100A-3500184 | Transition connector | |
| 37 | PAG12X1.5 | Pall tube | |
| 38 | AZ9100360310 | One - way valve | |
| 39 | 6127A02-3513100 | Air cylinder |
