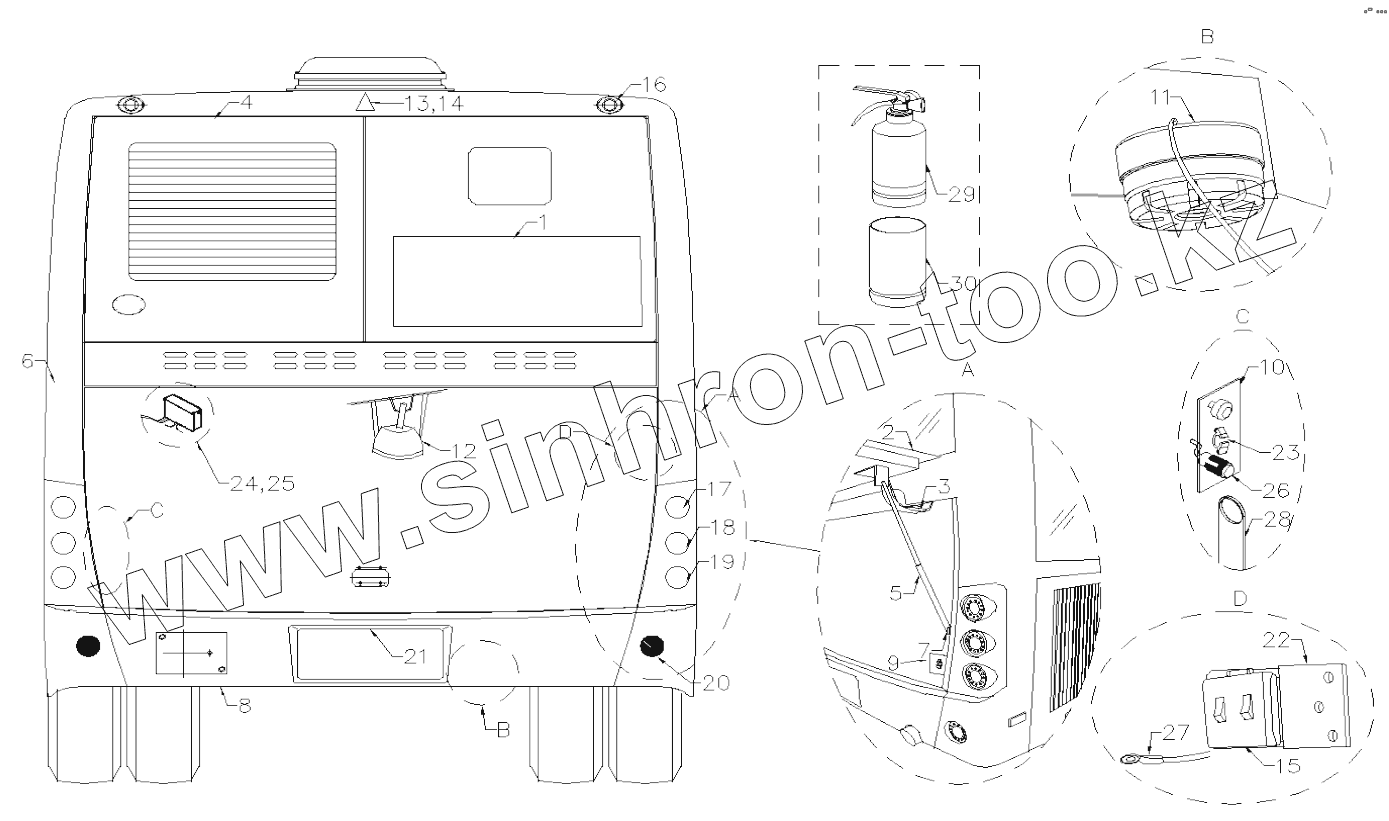

Каталог запасных частей к технике: Golden Dragon XML6125CN-3150244. REAR PANEL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 6125Y10-5603100-FK36 | Rear window shield | |
| 2 | 6125Y11-5604100-FK34 | Compartment door, rear | |
| 3 | 6116G91-5604050- DT34 | Hinge, Compartment door, rear | |
| 4 | 6125Y11-5604200-FK36 | Compartment door, side | |
| 5 | QH680-500N290 | Air strut | |
| 6 | 6125Y10-5602100-FK34 | FRP assy, rear panel assy | |
| 7 | 6127E01-6101103 | Air strut support, Compartment door, rear | |
| 8 | 6125Y10-5602200-FK36 | Rear bumper | |
| 9 | 6105E01-5604202 | Lock bearing, compartment door, rear, right | |
| 10 | 6105E01-5604201 | Lock bearing, compartment door, rear, left | |
| 11 | 6100A1-3719100-A1 | Reversing buzzer | |
| 12 | QT737-00-A1 | Working lamp , engine compartment | |
| 13 | 485.07020-27 | Probe line | |
| 14 | 6125A12-3776400 | Color reversing monitor | |
| 15 | KW-HQD-F | Starter box, rear | |
| 16 | 6100UB2-3731100-B0 | Rear marker lamp | |
| 17 | 6121C01-4111310 | Turn light, rear | |
| 18 | 4134330-204 | Brake light | |
| 19 | 6121C01-4113100 | Reversing light | |
| 20 | 4116200-204 | Combined reflector, foglight, rear | |
| 21 | 6127A06-4108100-B0 | License plate light | |
| 22 | QD-3704071-XF | Bracket, rear starter box | |
| 23 | 6107100 | Latch | |
| 24 | 6125P01-3700200-A1 | Electric control box, rear | |
| 25 | 6125P01-3700308 | Fixing bracket, electric control box , rear | |
| 26 | 6122E04-3758110 | Compartment door switch, electromagnetic | |
| 27 | 1126-105C | Probe, engine compartment | |
| 28 | PS-2107220-XF | Bracket, magnetic switch | |
| 29 | MFZ-ABC4-Y-B | Bracket, fire extinguisher | |
| 30 | MHQZJ4-4F-G3YS-HM | Fire extinguisher stent |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
