Каталог запасных частей к технике: Golden Dragon XML6125CN-3150244. REAR AXLE ASSY
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
31
31
31
31
31
32
33
34
35
36
36
37
37
38
38
39
39
40
41
42
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
44
45
46
46
47
48
49
50
51
52
53
53
54
54
54
55
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
77
77
77
77
77
77
77
77
77
77
77
77
77
77
77
77
77
77
77
77
77
77
77
77
78
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
79
80
81
82
83
84
85
86

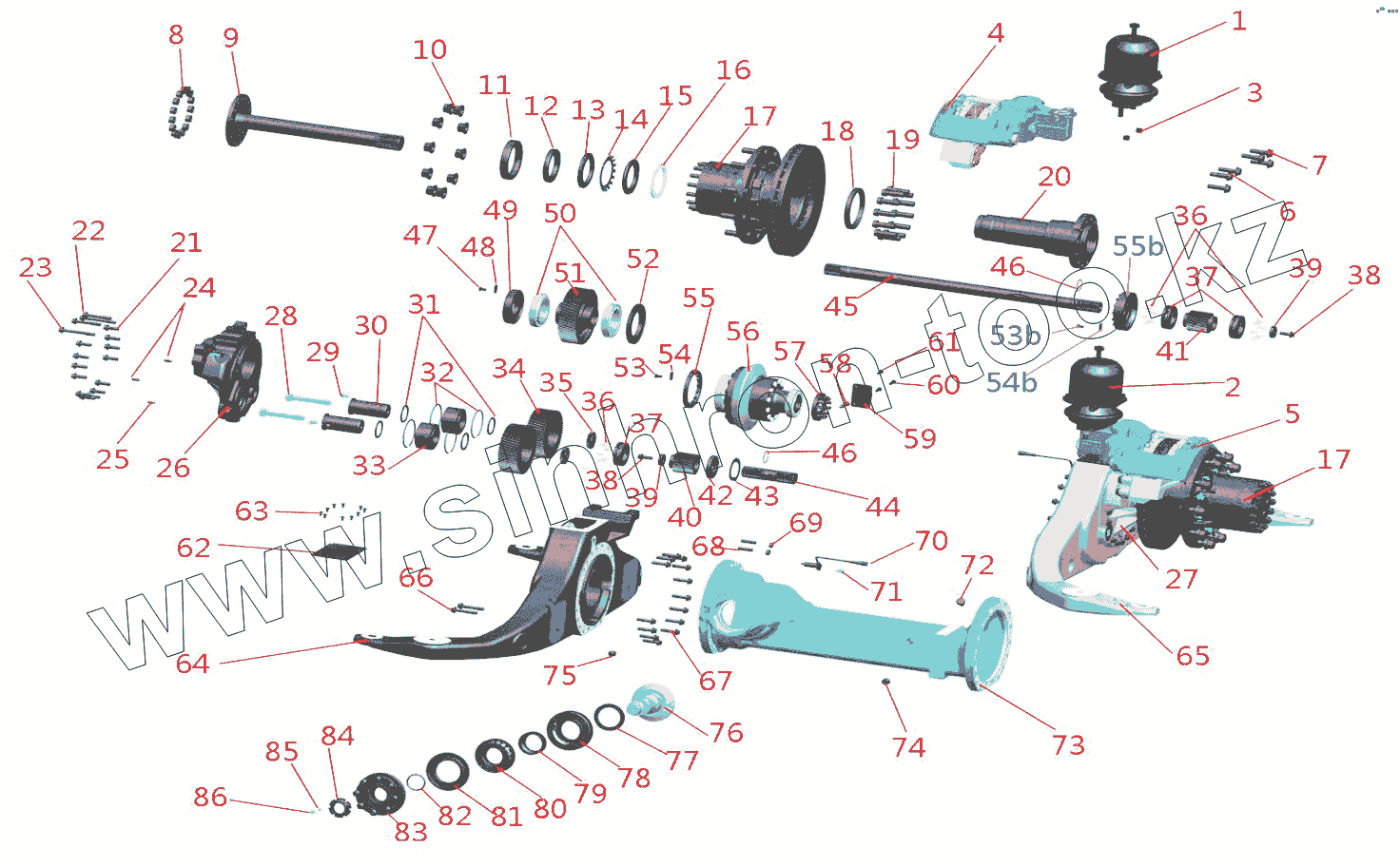

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 24ZDS01A-080 | 24ZDS01A-080 | Pipe joint | |
| 1 | 3530010-ZD01K | Spring brake chamber assy | |
| 2 | 3530010-ZD01K | Spring brake chamber assy | |
| 3 | 832.00-3141-069 | Locking nut, used to fixeding brake chamber assy | |
| 4 | 3502010-ZD01K | Left disc brake assy | |
| 5 | 3502015-ZD01K | Right disc brake assy | |
| 6 | 702.20-3141-007 | Locking bolt, used to fixeding disc brake assy | |
| 7 | 702.01-3141-006 | Hex flange bolt, used to fixeding disc brake assy | |
| 7 | 702.20-3141-006 | Hex flange bolt, used to fixeding disc brake assy | |
| 8 | MVGSZ-588-M16X1.5 | Hex flange bolt | |
| 9 | BPR28-61AD-13003 | Axle drive shaft | |
| 10 | 582.90-3140-005 | Wheel nut | |
| 11 | BPR17-43RD-40004 | Rear hub outer oil sealing seat | |
| 12 | 138.31-3340-006 | Rear hub outer oil sealing assy | |
| 13 | BPR28-43AD-10126 | Rear hub outer bearing adjusting nut | |
| 14 | MB-20-MSZ7890 | Lock plate | |
| 15 | BPR28-43AD-10126 | Rear hub outer bearing adjusting nut | |
| 16 | BPR17-43RD-10116 | Lock plate | |
| 18 | BPR28-43AD-40006 | Rear hub inner oil sealing assy | |
| 19 | 138.10-3310-115 | Hex flange bolt, used to fixeding hub shaft tube | |
| 20 | B28-51BD-10011 | Hub shaft tube | |
| 21 | 598.60-3300-004 | Bolt, used to fixeding brake plate | |
| 22 | BPR28-43AD-10025 | Hex flange bolt, used to fixeding brake plate | |
| 23 | BPR28-43AD-10152 | Hex flange bolt, used to fixeding brake plate | |
| 24 | Q5280824 | Spring pin | |
| 25 | Q5221024 | Locating pin | |
| 26 | 3502026-ZD01K | Left brake plate | |
| 27 | 3502126-ZD01K | Right brake plate | |
| 28 | BPR28-46AA-10078 | Bolt | |
| 29 | Q2180614 | Screw | |
| 30 | BPR28-46AA-10075 | Idler pulley shaft | |
| 31 | BPR17-43RD-10181 | Adjust shim | |
| 31 | BPR17-43RD-10182 | Adjust shim | |
| 31 | BPR17-43RD-10183 | Adjust shim | |
| 31 | BPR17-43RD-10184 | Adjust shim | |
| 31 | BPR17-43RD-10185 | Adjust shim | |
| 31 | BPR17-43RD-10186 | Adjust shim | |
| 31 | BPR17-43RD-10187 | Adjust shim | |
| 32 | SB100 | Elastic ring | |
| 33 | 2402740-ZD99A | Double row tapered roller bearing | |
| 34 | BPR28-43AD-10064 | Idler pulley | |
| 35 | 138.10-3310-076 | Baffle block | |
| 36 | 1.6X10X27-DIN2098 | Compression spring | |
| 37 | 2402770-ZD99A | Thrust bearing | |
| 38 | BPR28-43AD-10153 | Hex flange bolt, used to fixeding half shaft | |
| 39 | BPR28-43AD-10151 | Link stopper | |
| 40 | BPR28-43AD-10062 | Left drive cylindrical gear | |
| 41 | BPR28-43AD-10061 | Right drive cylindrical gear | |
| 42 | BPR28-43AD-10045 | Left differential case retaining ring | |
| 43 | BPR28-43AD-10136 | Thrust washer | |
| 43 | BPR28-43AD-10137 | Thrust washer | |
| 43 | BPR28-43AD-10138 | Thrust washer | |
| 43 | BPR28-43AD-10139 | Thrust washer | |
| 43 | BPR28-43AD-10140 | Thrust washer | |
| 43 | BPR28-43AD-10141 | Thrust washer | |
| 43 | BPR28-43AD-10142 | Thrust washer | |
| 43 | BPR28-43AD-10143 | Thrust washer | |
| 43 | BPR28-43AD-10144 | Thrust washer | |
| 43 | BPR28-43AD-10145 | Thrust washer | |
| 43 | BPR28-43AD-10146 | Thrust washer | |
| 43 | BPR28-43AD-10147 | Thrust washer | |
| 43 | BPR28-43AD-10148 | Thrust washer | |
| 43 | BPR28-43AD-10165 | Thrust washer | |
| 43 | BPR28-43AD-10166 | Thrust washer | |
| 43 | BPR28-43AD-10167 | Thrust washer | |
| 43 | BPR28-43AD-10135 | Thrust washer | |
| 43 | BPR28-43AD-10168 | Thrust washer | |
| 43 | BPR28-43AD-10169 | Thrust washer | |
| 43 | BPR28-43AD-10170 | Thrust washer | |
| 43 | BPR28-43AD-10171 | Thrust washer | |
| 43 | BPR28-43AD-10172 | Thrust washer | |
| 43 | BPR28-43AD-10173 | Thrust washer | |
| 43 | BPR28-43AD-10174 | Thrust washer | |
| 43 | BPR28-43AD-10175 | Thrust washer | |
| 44 | BPR28-45CX-10043 | Short half shaft | |
| 45 | BPR28-45CX-10095 | Long half shaft | |
| 46 | Q43745 | Snap ring | |
| 47 | Q150B0816-0H1 | Hexagonal bolt | |
| 48 | 138.10-3310-055 | Lock plate | |
| 49 | 138.10-3310-102 | Passive cylindrical gear dearing adjusting nut | |
| 50 | 2402780-ZD99A | Tapered roller bearing | |
| 51 | BPR28-43AD-10085 | Passive cylindrical gear | |
| 52 | BPR28-43AD-10008 | Abs sensor gear ring | |
| 53 | Q150B0816-0H1 | Hexagonal bolt | |
| 53 | Q150B0816-0H1 | Hexagonal bolt | |
| 54 | BPR28-43AD-10056 | Lock plate | |
| 54 | BPR28-43AD-10057 | Lock plate | |
| 54 | 138.10-3310-055 | Lock plate | |
| 55 | BPR28-44AB-10042 | Left differential case dearing adjusting nut | |
| 55 | 138.10-3310-092 | Adjusting nut-right cylindrical gear dearing | |
| 56 | 2402310-ZD01E | Ring gear and differential assembly | |
| 57 | BPR28-43AD-10012 | Right differential case dearing adjusting nut | |
| 58 | BPR28-43AD-10009 | Adjusting nut locking bolt | |
| 59 | 138.10-3310-005 | Sealing cover plate | |
| 60 | Q150B0830-0H1 | Hexagonal bolt | |
| 61 | Q150B0825-0H1 | Hexagonal bolt | |
| 62 | BPR28-43AD-10053 | Cover plate | |
| 63 | Q2140612 | Cross countersunk head screw | |
| 64 | B28-43AD-10041 | Left c type arm | |
| 65 | B28-43AD-10091 | Right c type arm | |
| 66 | BPR28-43AD-10026 | Hex flange bolt, used to fixeding c type arm | |
| 67 | 138.10-3310-018 | Hex flange bolt, used to fixeding c type arm | |
| 68 | 138.10-3310-044 | Stud bolt, used to fixeding c type arm | |
| 69 | Q341C12-0H1 | Hexagonal nut | |
| 70 | 3550050-ZD01E | Abs sensor assy | |
| 71 | Q2180614 | Screw | |
| 72 | 594.00-3310-031 | Air breather plug assy | |
| 73 | 2401025-ZD01E | Axle housing | |
| 74 | 594.20-3310-055 | Oil drain plug | |
| 75 | 594.20-3310-055 | Oil drain plug | |
| 76 | M24025ZD1838 | Drive pinion | |
| 77 | BPR28-43AD-11102 | Adjust shim | |
| 77 | BPR28-43AD-11103 | Adjust shim | |
| 77 | BPR28-43AD-11104 | Adjust shim | |
| 77 | BPR28-43AD-11105 | Adjust shim | |
| 77 | BPR28-43AD-11106 | Adjust shim | |
| 77 | BPR28-43AD-11107 | Adjust shim | |
| 77 | BPR28-43AD-11108 | Adjust shim | |
| 77 | BPR28-43AD-11109 | Adjust shim | |
| 77 | BPR28-43AD-11110 | Adjust shim | |
| 77 | BPR28-43AD-11111 | Adjust shim | |
| 77 | BPR28-43AD-11112 | Adjust shim | |
| 77 | BPR28-43AD-11113 | Adjust shim | |
| 77 | BPR28-43AD-11114 | Adjust shim | |
| 77 | BPR28-43AD-11115 | Adjust shim | |
| 77 | BPR28-43AD-11116 | Adjust shim | |
| 77 | BPR28-43AD-11117 | Adjust shim | |
| 77 | BPR28-43AD-11118 | Adjust shim | |
| 77 | BPR28-43AD-11119 | Adjust shim | |
| 77 | BPR28-43AD-11120 | Adjust shim | |
| 77 | BPR28-43AD-11121 | Adjust shim | |
| 77 | BPR28-43AD-11122 | Adjust shim | |
| 77 | BPR28-43AD-11123 | Adjust shim | |
| 77 | BPR28-43AD-11124 | Adjust shim | |
| 77 | BPR28-43AD-11125 | Adjust shim | |
| 77 | BPR28-43AD-11126 | Adjust shim | |
| 78 | 2402720-ZD99A | Tapered roller bearing | |
| 79 | BPR28-43AD-11036 | Adjust spacer | |
| 79 | BPR28-43AD-11037 | Adjust spacer | |
| 79 | BPR28-43AD-11038 | Adjust spacer | |
| 79 | BPR28-43AD-11039 | Adjust spacer | |
| 79 | BPR28-43AD-11040 | Adjust spacer | |
| 79 | BPR28-43AD-11041 | Adjust spacer | |
| 79 | BPR28-43AD-11042 | Adjust spacer | |
| 79 | BPR28-43AD-11043 | Adjust spacer | |
| 79 | BPR28-43AD-11044 | Adjust spacer | |
| 79 | BPR28-43AD-11045 | Adjust spacer | |
| 79 | BPR28-43AD-11046 | Adjust spacer | |
| 79 | BPR28-43AD-11047 | Adjust spacer | |
| 79 | BPR28-43AD-11048 | Adjust spacer | |
| 79 | BPR28-43AD-11049 | Adjust spacer | |
| 79 | BPR28-43AD-11050 | Adjust spacer | |
| 79 | BPR28-43AD-11051 | Adjust spacer | |
| 79 | BPR28-43AD-11052 | Adjust spacer | |
| 79 | BPR28-43AD-11053 | Adjust spacer | |
| 79 | BPR28-43AD-11054 | Adjust spacer | |
| 79 | BPR28-43AD-11055 | Adjust spacer | |
| 79 | BPR28-43AD-11056 | Adjust spacer | |
| 79 | BPR28-43AD-11057 | Adjust spacer | |
| 79 | BPR28-43AD-11058 | Adjust spacer | |
| 79 | BPR28-43AD-11059 | Adjust spacer | |
| 79 | BPR28-43AD-11060 | Adjust spacer | |
| 79 | BPR28-43AD-11061 | Adjust spacer | |
| 79 | BPR28-43AD-11062 | Adjust spacer | |
| 79 | BPR28-43AD-11063 | Adjust spacer | |
| 79 | BPR28-43AD-11064 | Adjust spacer | |
| 79 | BPR28-43AD-11067 | Adjust spacer | |
| 79 | BPR28-43AD-11068 | Adjust spacer | |
| 79 | BPR28-43AD-11065 | Adjust spacer | |
| 79 | BPR28-43AD-11066 | Adjust spacer | |
| 80 | 2402730-ZD99A | Tapered roller bearing | |
| 81 | 2402060-ZD01K | Dive pinion oil seal | |
| 82 | SIMRIT55572NBR872 | O type sealing ring | |
| 83 | B28-51CC-11071 | Flange and dust cover assy | |
| 84 | HN162 | Drive pinion bearing adjusting nut | |
| 85 | Q40405 | Washer | |
| 86 | Q2180510 | Bolt |
