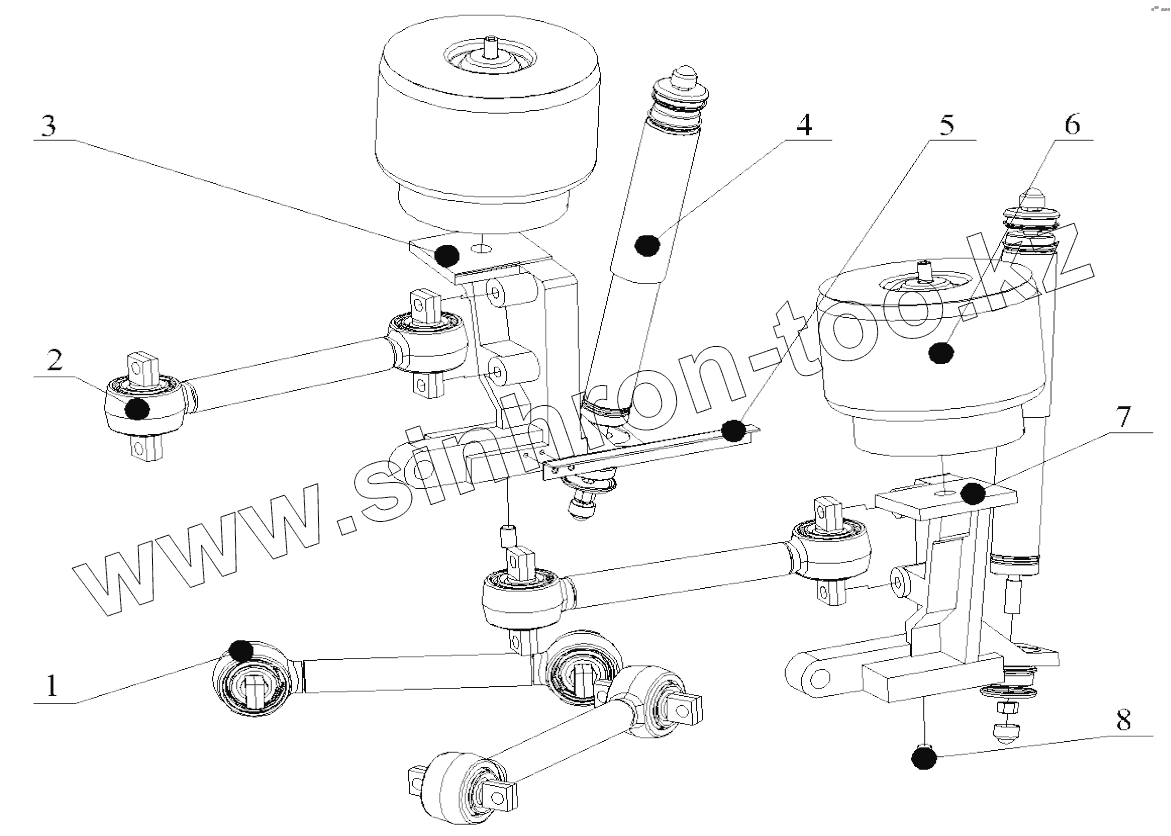

Каталог запасных частей к технике: Golden Dragon XML6125CN-3150244. JR-075BFA2-001 FRONT AIR SUSPENSION ASSY

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Golden Dragon Hyundai Ikarus Karosa King Long Neoplan Yutong ZF АМАЗ Богдан ЗИЛ КАВЗ Камский автозавод ЛАЗ ЛЗГМП ЛиАЗ Нефтекамский автозавод ПАЗ УралАЗ

Модель Не выбрано XML6105CN-7150227 (2015) XML6125CN-3150244 (2015) XML6127CNG-3141495 (2015) XML6139JR-3141082 (2015) XML6845CN-3150236 (2015)

Схема > Не выбрано FRONT PANEL 6115Y07-3741100 FRONT WIPER SIDE PANEL SIDE COMPARTMENT BATTERY COMPARTMENT PASSENGER DOOR INSTALLATION ASSEMBLY REAR PANEL DRIVER COMPARTMENT ELECTRICAL APPARATUS, FRONT INSTRUMENTS PANEL 6125Y07-3700100-R0 ELECTRIC BOX TOP COVER & SIDE PANEL ARMREST & SEAT FLOOR COVERING & REPAIR HATCH STEERING SYSTEM STEERING OPERATION BOOSTING PIPELINE SCHEMATIC DIAGRAM, BRAKE ARRANGEMENT DIAGRAM, BRAKE CONTROL AND FRONT BRAKE AIR CYLINDER AND 4-WAY PROTECTIVE VALVE AIR SUPPLY REAR BRAKE AND PARKING BRAKE ANTI-LOCK BRAKING SYSTEM (ABS) FRONT AXLE ASSEMBLY FRONT AXLE ASSY STEERING TIE ROD FRONT BRAKE SYSTEM REAR AXLE ASSEMBLY REAR AXLE ASSY WHEEL BRAKE DISC ASSEMBLY ASSEMBLY DIFFERENTIAL ASSEMBLY ASSEMBLY BRAKE ASSEMBLY ASSEMBLY FRONT SUSPENSION ASSEMBLY JR-075BFA2-001 FRONT AIR SUSPENSION ASSY FRONT STABILIZER INSTALL ASSEMBLY REAR SUSPENSION ASSEMBLY JR-130BRG1-003 REAR AIR SUSPENSION ASSY AIR LEVELING WHEEL INSTALLTION DRIVE SHAFT INSTALLATION 6125Y27-2201010-FK36 DRIVE SHAFT GEARBOX ASSEMBLY ENGINE & AROUND PARTS ENGINE MOUNTING SYSTEM CHASSIS LUBRICATION SYSTEM GAS SYSTEM THROTTLE CONTROL MECHANISM AIR INTAKE SYSTEM AH24192 AIR FILTER EXHAUST SYSTEM COOLING SYSTEM 6103A01-1311010-JSHF EXPENSION WATER TANK HEATING PIPELINE CS-7DL-25 DEFROSTER T350 THE HEATER ASSEMBLY NAME PLATE, COMPLETE SET LOCK, COMPLETE SET TOOLS SUPPLIED WITH THE BUS HZKG-3900 TOOLS SUPPLIED WITH THE BUS HARNESS, COMPLETE SET

1

2

3

4

5

6

7

8

Позиция на иллюстрации	Заводской номер детали		Название детали
1	03-130446-01		Thrust bar assy
2	03-130458-01		Thrust bar assy
3	0501-01-22200		Air bellows support
4	SACHS0031897		Shock absorber assembly, front
5	1213-01-61200		Bracket
6	6613020		Air-bag assy
7	0501-01-21200		Air bellows support
8	0501-01-70001		Pin

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
