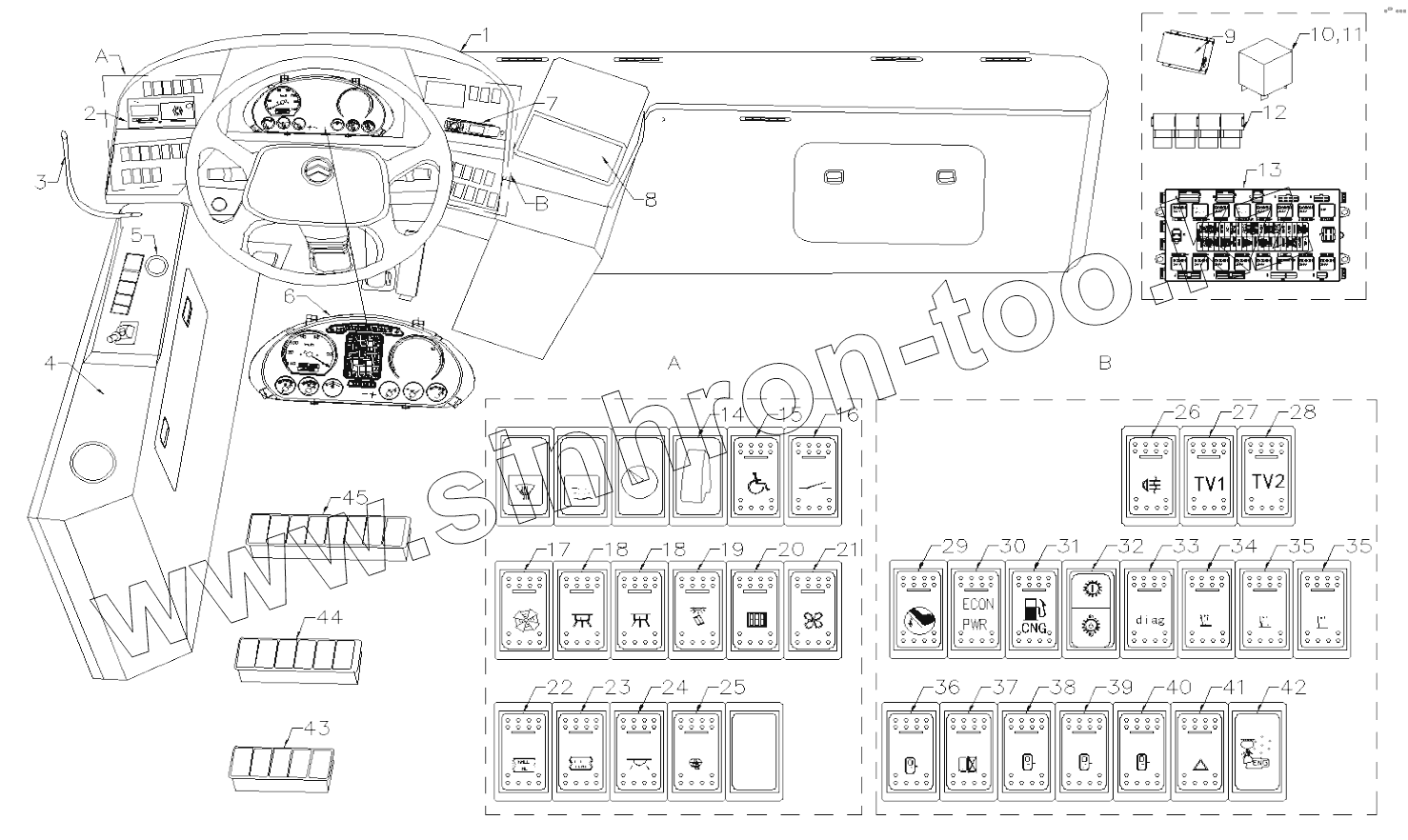

Каталог запасных частей к технике: Golden Dragon XML6125CN-3150244. ELECTRICAL APPARATUS, FRONT INSTRUMENTS PANEL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35
36
37
38
39
40
41
42
43
44
45
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 6125Y14-5306100 | Master instrument panel assy | |
| 2 | DTC0-1381 | Digital recording equipment | |
| 3 | 385-40008-01 | Goose neck microphone | |
| 4 | 6125Y12-5306200-CT07 | Sub instrument panel assembly | |
| 5 | 6155Y02-3725210-12 | Cigarette holder | |
| 6 | VD-ZB279E-CNGRS- 2050 | Combined instruments | |
| 7 | 7908-900-C6A | DVD single-disc DVD | |
| 8 | 6125A12-3776400 | Color reversing monitor | |
| 9 | 1126-001E | High temperature alarm | |
| 10 | 0332209211 | Five-pin relay | |
| 11 | JD2914-018 | Quadrangle relay | |
| 12 | ZJ091 | Diode group | |
| 13 | 6125Y07-3700100-R0 | ELECTRIC BOX | |
| 14 | MT203114 | Emergency exit switch | |
| 15 | 6180Y01-3792432-DQ02 | Power switch, ramp plate | |
| 16 | 6180Y01-3792431-DQ02 | Switch, ramp plate | |
| 17 | JK967-4.18-189 | Electric fan switch | |
| 18 | 6125S3-3792120 | Fluorescence lamp switch | |
| 19 | 6125S3-3792220 | Reading lamp switch | |
| 20 | 6845Y01-3972080 | Signs switch | |
| 21 | 6145A01-3792680 | Rocker switch, exhaust fan | |
| 22 | 6125S3-3793000 | ECAS normal height indicator board | |
| 23 | 6125S3-3792930 | Body lifting switch | |
| 24 | 6125S3-3792010 | Night lamp switch | |
| 25 | 6125S3-3792690 | Rearview mirror defrost switches | |
| 26 | 6122A01-3792620 | Foglight switch, rear | |
| 27 | 6125S3-3792720 | TV switch | |
| 28 | 6145A01-3792730 | TV2 switch | |
| 29 | 6125S3-3792950 | Retarder switch | |
| 30 | JK967-AT-052 | Economic performance selector switch | |
| 31 | JK967-18.67-189 | CNG power switch | |
| 32 | 6180H01-3793150 | The gearbox fault/hydraulic oil temperature | |
| 33 | 6145A01-3712120 | Diagnosis rocker switch | |
| 34 | 6845Y01-3792090 | Heater switch | |
| 35 | 6122A01-3792090 | Heater switch | |
| 36 | JK967-4.1-067 | Rocker switch, door | |
| 37 | 6125Y07-3793290 | Switch, after the front page | |
| 38 | 6125S3-3792410 | Front door switch | |
| 39 | 6125S3-3792430 | Middle door switch | |
| 40 | JK967-4.2B-067 | Door switch, rear | |
| 41 | 6937A16-3792130 | Emergency alarm switch | |
| 42 | ANL-004B1 | Manually start the fire extinguisher and alarm switch | |
| 43 | 6127A01-3792850 | Quintuple frame | |
| 44 | 6891-3750120 | Sixfold frame | |
| 45 | 6837A01-3792875 | Eight league framework |
