Каталог запасных частей к технике: Golden Dragon XML6125CN-3150244. COOLING SYSTEM
1
2
2
3
4
5
5
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
24
25
26
27
28

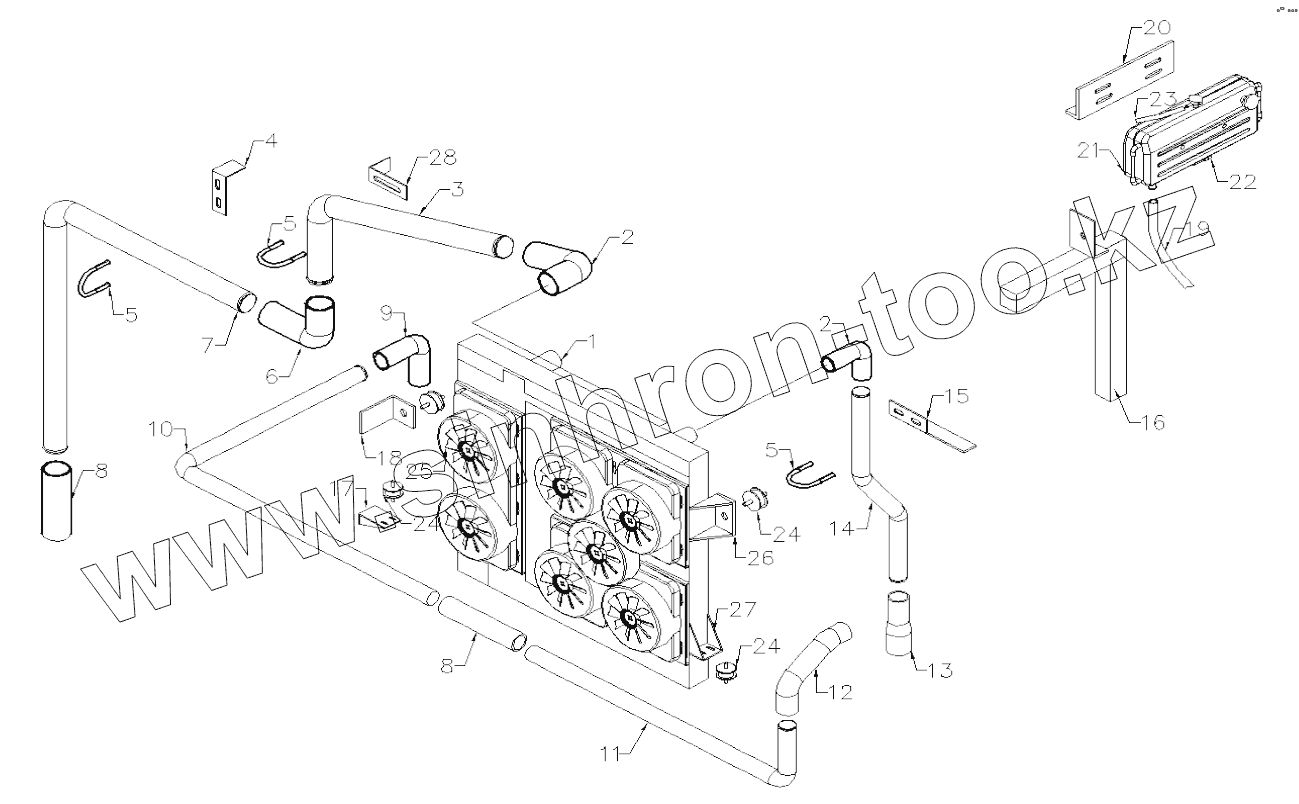

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 6122K07-1301010-L | Cooling system | |
| 2 | 6112E52-1303021 | Hose connectors | |
| 3 | 6125Y27-1303022 | Pipe, water outlet | |
| 4 | 6925Y02-1303023-CX80 | Fixing plate | |
| 5 | 6100A1-1303312 | U-bolt | |
| 6 | XLX1303-L-002 | Rubber pipe, water outlet | |
| 7 | 6125Y27-1303024 | Steel pipe, water inlet | |
| 8 | SG-50-240 | Cooling pipe | |
| 9 | XML1303002G6F0 | Pipe, water inlet | |
| 10 | 6125Y27-1303026 | Steel pipe, water outlet | |
| 11 | 6125Y27-1303028 | Steel pipe, water inlet | |
| 12 | XML1303001G6F0 | Rubber pipe, water outlet | |
| 13 | 6145A01-1303015 | Pipe connector | |
| 14 | 6125Y27-1303012 | Steel pipe, water outlet | |
| 15 | 6125G06-1303028-L | Bracket | |
| 16 | 6125Y27-1302020 | Cross beam fitting, front, radiator | |
| 17 | 6125Y27-1302042 | Bracket | |
| 18 | 6125Y27-1302040 | Bracket | |
| 19 | XML8101007N1C0 | Hot water pipe | |
| 20 | 6125Y12-1311020 | Bracket | |
| 21 | 6103A01-1311010-JSHF | Expension water tank assy | |
| 22 | 6122K01-3820810 | Electric alarm switch, water level, water tank | |
| 23 | SYYB-08 | Vent pipe | |
| 24 | 1200-014-VK0 | Cushion, rubber | |
| 25 | W3G300-BV25-23 | Fan | |
| 26 | 6125Y27-1302030 | Bracket | |
| 27 | 6125Y27-1302032 | Bracket | |
| 28 | 6122A62-1303039 | Bracket |
