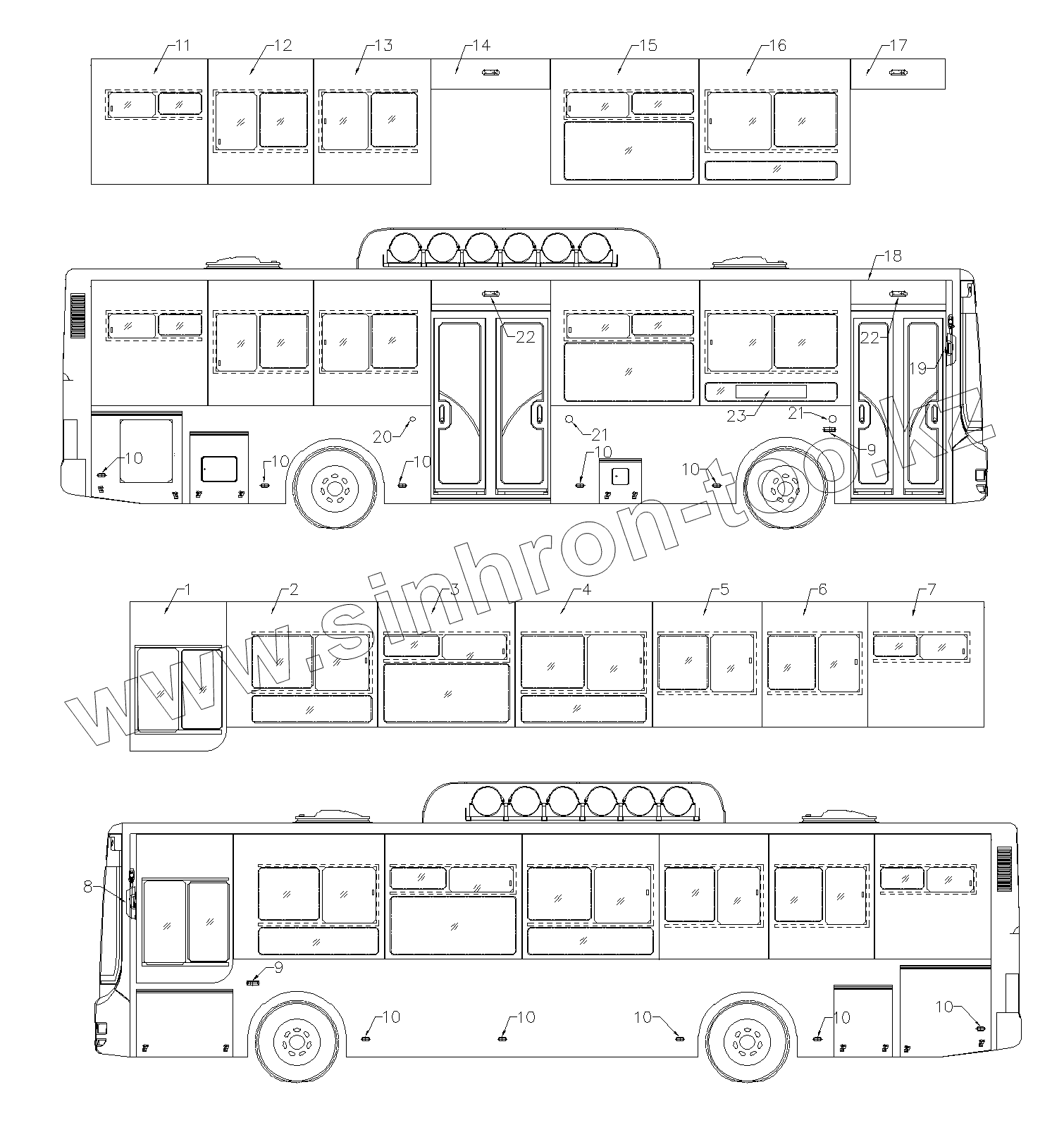

Каталог запасных частей к технике: Golden Dragon XML6105CN-7150227. SIDE PANEL
1
2
3
4
5
6
7
8
9
9
10
10
10
10
10
10
10
10
10
10
11
12
13
14
15
16
17
18
19
20
21
21
22
22
23
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 6105Y04-5403008-FK34 | Driver window assy | |
| 2 | 6105Y04-5403009-FK34 | Built-in sliding window | |
| 3 | 6105Y04-5403011-FK34 | Built-in sliding window | |
| 4 | 6105Y04-5403012-FK34 | Built-in sliding window | |
| 5 | 6105Y04-5403013-FK34 | Built-in sliding window | |
| 6 | 6105Y04-5403014-FK34 | Built-in sliding window | |
| 7 | 6105Y04-5403015-FK34 | Built-in sliding window | |
| 8 | CY170B | External rearview mirror, left | |
| 9 | 3716-00147 | Turn light, side | |
| 10 | 6930A2-3731400-C0 | Combination lamp, side reflection | |
| 11 | 6105Y04-5403001-FK34 | Built-in sliding window | |
| 12 | 6105Y04-5403002-FK34 | Built-in sliding window | |
| 13 | 6105Y04-5403003-FK34 | Built-in sliding window | |
| 14 | 6105Y04-5403004-FK34 | Upper glass, middle door | |
| 15 | 6105Y04-5403005-FK34 | Built-in sliding window | |
| 16 | 6105Y04-5403006-FK34 | Built-in sliding window | |
| 17 | 6105Y04-5403007-FK34 | Upper glass, front door | |
| 18 | LXC1690C-6M | Drainage slot profile | |
| 19 | CY170A | External rearview mirror, right | |
| 20 | JF-001 | The disabled button | |
| 21 | JF-105 | Emergency valve | |
| 22 | M180X60-LED | Spot light | |
| 23 | 6105Y08-7913300-FK34 | Electronic guideboard, side |
