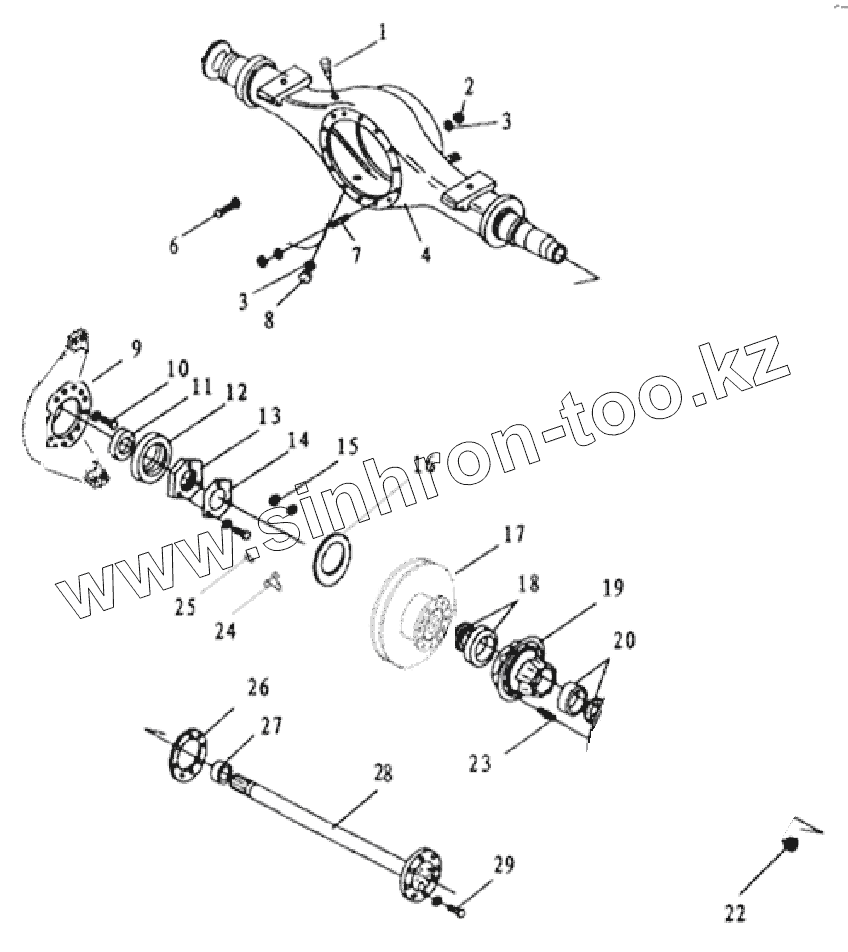

Каталог запасных частей к технике: Golden Dragon XML6105CN-7150227. REAR AXLE ASSY
1
2
3
3
4
4
4
4
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
22
23
24
25
25
26
27
28
29
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 3502065-NQ26Y | 3502065-NQ26Y | Rear hub brake disc assembly | |
| BS8518 | BS8518 | Rear right spring energy storage brake chamber assembly | |
| BS8517 | BS8517 | Rear left spring energy storage brake chamber assembly | |
| 1 | 24RAS01-01068 | Vent plug | |
| 2 | 24N-01065 | Plug, oil level | |
| 3 | 24N-01066 | Sealing washer | |
| 4 | 2401010-NQ71E | Rear axle housing assy | |
| 4 | 2401XNR325-032 | Bolt | |
| 4 | Q151B1642-0H1-J1 | Heavy-duty spring washer | |
| 4 | Q40516 | Drain plug | |
| 6 | Q151B1445-0H1-J1 | Rear brake plate assy | |
| 7 | 24N-01063 | Bolt | |
| 8 | 24N-01072 | Oil drain plug | |
| 9 | 3502NS82B-026 | Rear oil seal collar | |
| 9 | 3502NS82B-126 | Rear hub oil seal assy | |
| 10 | Q151B1635-0H1 | Rear hub adjusting nut | |
| 11 | 31N-04075 | Lock washer | |
| 12 | 3104080-NQ26Y | Screw | |
| 13 | 24N-01076-A | Abs rear ring | |
| 14 | 24N-01081 | Rear brake drum | |
| 15 | Q2140616 | Rear hub inner bearing assy | |
| 16 | 24ABS1-00011 | Rear hub | |
| 17 | 35NP2-01075 | Brake disc | |
| 18 | 31N-04020 | Outer bearing assy, rear hub | |
| 19 | 31NP-04015 | Tyre bolt | |
| 20 | 31N-04030 | Abs sensor bracket | |
| 22 | 31NP-03054 | Nut | |
| 23 | 31NP-04051 | Bolt | |
| 24 | 24ABS1-00012 | Axle shaft seal assy | |
| 25 | 35Z02-00030 | ABS sensor | |
| 25 | 35Z02-00031 | Clamping sleeve | |
| 26 | 24NP-03064 | Rear hub & brake drum assy | |
| 27 | 2401090-NQ26Y | Axle shaft seal assy | |
| 28 | 24NP-03065 | Axle shaft | |
| 29 | 24N-03063 | Axle shaft bolt |
