Каталог запасных частей к технике: Golden Dragon XML6105CN-7150227. HEATING PIPELINE
1
2
3
3
4
5
5
6
7
7
7
8
9
10
11
12
12
12
13
14
14
14
14
15
15
15
15
16
17
18
19
20
20
20
21
21
21
22
23
23
24
25
26
27
27
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44

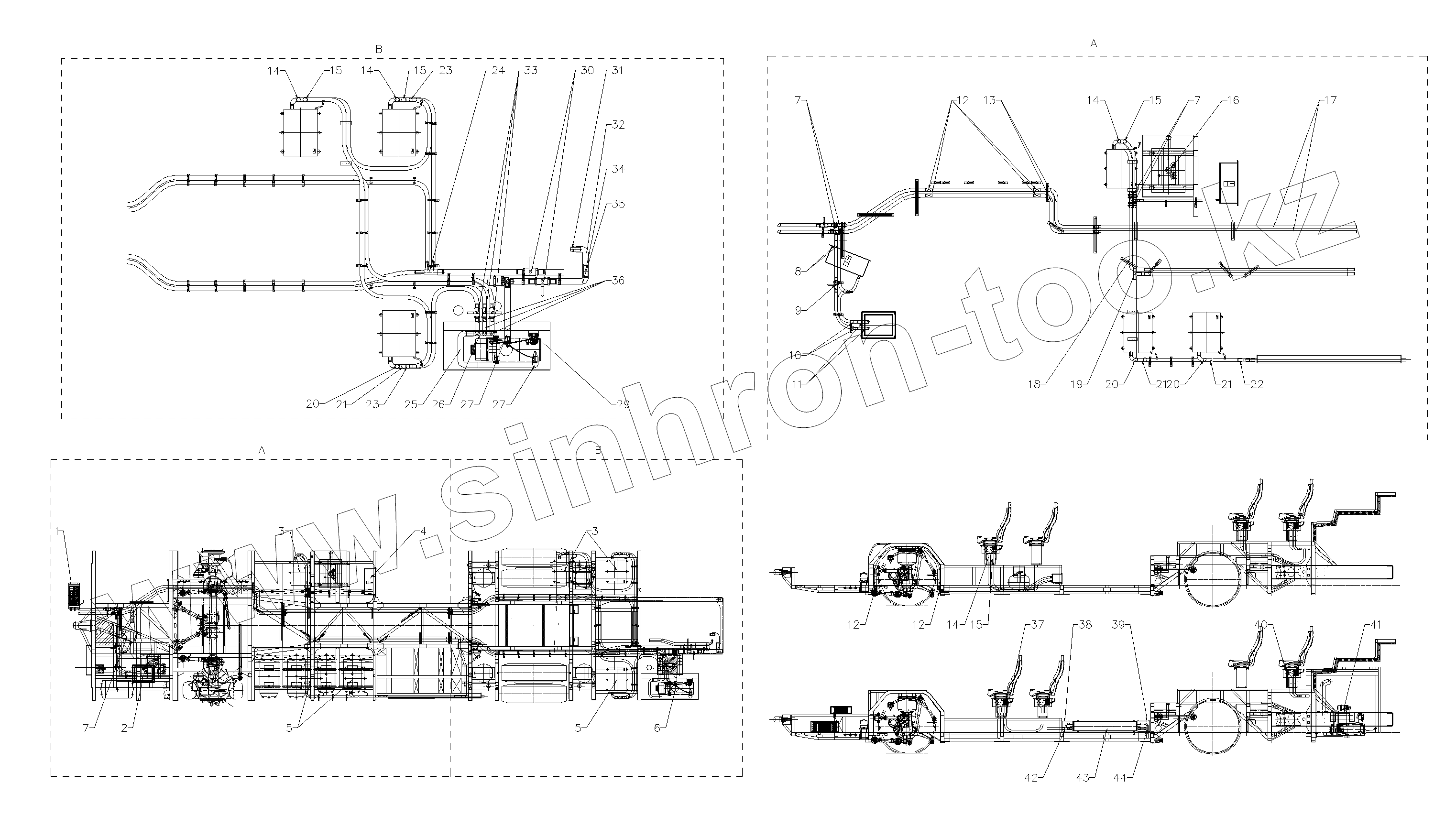

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | CS-7DL-25 | Defroster | |
| 2 | SR-15A | Radiator | |
| 3 | SR-4AR/12 | Radiator | |
| 4 | SR-25C/07 | Radiator, step | |
| 5 | SR-4AL/11 | Radiator | |
| 6 | T350 | Heater | |
| 7 | 6127A11-8123505 | 3-way pipe | |
| 8 | 6121C04-8123527 | Rubber pipe | |
| 9 | 6610C-598 | Valve | |
| 10 | 87125-36410 | Bronze connecting pipe | |
| 11 | 6551L01-8123901 | Connecting pipe | |
| 12 | 6125G04-8123921 | Connecting pipe | |
| 13 | 6125G10-8123949 | 6125G10-8123949 | |
| 14 | 6125G10-8123905 | Heating pipeline | |
| 15 | 6125V03-8123949 | Connecting pipe | |
| 16 | 6105Y08-8123501YX | Oil tank | |
| 17 | 6115E01-8123707 | Heat pipe | |
| 18 | 6857A05-8123512 | Connecting rubber hose, radiator II | |
| 19 | 8121296F1A0 | Tee | |
| 20 | 6105Y08-8123906 | Rubber pipe | |
| 21 | 6125V03-8123948 | Connecting pipe | |
| 22 | 6125G10-8123503A | Connecting pipe | |
| 23 | 6891A1-8102031 | Hose , heating system | |
| 24 | 6105Y08-8123501 | Four-way pipe | |
| 25 | 6125G11-8123514 | Rubber pipe | |
| 26 | 6125Y13-8123710 | Four-way pipe | |
| 27 | 6125Y12-8123921 | Water outlet pipe, heater | |
| 28 | 6102E08-8123515 | Water outlet pipe | |
| 29 | 6845Y04-8123209 | Bracket | |
| 30 | 6155Y01-8101016 | Valve | |
| 31 | 6125G08-8123905 | Water intake, engine | |
| 32 | 6125Y12-8123923 | Connector, rubber | |
| 33 | 6891-8101016 | Valve | |
| 34 | 6155Y01-8123573 | Copper straight pipe | |
| 35 | 6105V02-8123519 | Rubber pipe | |
| 36 | 6127A01-8123516E | 6127A01-8123516E | |
| 37 | 6105Y08-8123702 | Rubber pipe cover | |
| 38 | SRP-197-GZ | Cover | |
| 39 | 6105Y08-8123704 | 6105Y08-8123704 | |
| 40 | 6105Y08-8123703 | Rubber pipe cover | |
| 41 | 6115E07-8123505 | Bracket | |
| 42 | 6125G10-8123944 | H-type tee | |
| 43 | SRP-1200 | Natural fins | |
| 44 | 6125G10-8123945 | F-type tee |
